EASIER TO INSTALL AND SAFER SUNRACK BRAND MOUNTING SYSTEMS

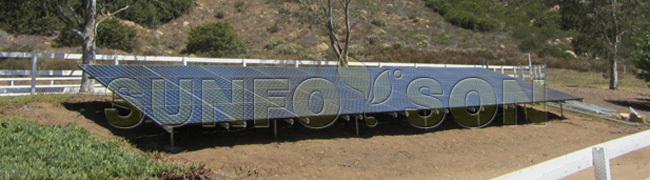

SunRack Ground Mounted Solar Rack
SunRack concrete base ground mounts type B is best used in 3 lines, 4 lines or above large lines solar ground mounts with very strong structure strength and highly competitive price.
Item No.: SFS-GM-01B
Payment:L/C T/T
Product Origin: Fujian,China
Color: Natural or Customized
Shipping Port: Xiamen port
Lead Time: 20 days
Classification of Affiliation:
SunRack Ground Mount
Keywords:
Ground Mounting System
Ground Mounting
Mounting System
Solar Racks
Ground Solar Panel Support
Aluminum Solar Panel Mounting System
Solar Panel Ground Mount Design
Adjustable Ground Mount Solar Rack
Product Enquiry
Product Description
Using SunRack , Enjoying Sunshine!
Using SunRack not only help you determine the best racking solution for solar power project, but also ensure you win the highest investment return and the most efficient of enjoying sunshine.
1. Lower cost, Incomparable value;
2. Faster installation, Flexible attachment;
3. More perfect service, Complete technical support;
4.10 years limited warranty, 20 years design life.
SFS-GM-01B SunRack Ground Mounting System
SunRack concrete base ground mounts is a highly versatile ground mounted solution that can be widely applied in commercial and utility installations. With patented components, sunRack Solar ground mounts saves installer considerable amount of time and presents you with great marketing edge over your competitors.
Sunforson Technology fixed ground pv stents adopt the double column structure, with a simple and dignified appearance, exquisite and stable structure, on-site installation without welding can be achieved, and with high reliability; to meet the structural carrying capacity features combined with practical, optimize the use of materials. Part of the battery plate connection with the use of rail mounting, suitable for all kinds of solar panels, and convenience for installation; greatly increased the efficiency of field construction, and save cost.
InstallationSite: Open ground
SingleSystemWeight: 20~25kg
SupportRail: Extruded aluminum
ApplicableTemperature: 50°~100°
WindLoad: 130mph(60m/s)
SnowLoad: 30psf(1.4kN/m2)
ApplicableModule: Framed
ModuleOrientation: Landscape or portrait
CodeCompliance: AS/NZS1170
Material: Aluminum,stainlesssteel
Warranty: 10years on material
Overview of system components
1.Easy Installation:
The innovative Sunforson solar rail and G-Screw modules have greatly simplified the installation of PV modules. The System can be installed with a single hexagon key and standard tool kit. The G-Screw module and unique rail extension method allow greatly reduced installation times.
2.Great Flexbilitity:
With the Sunforson ground mounting, framed or frameless photovoltaic modules can be easily mounted on ground. Designed as a unversal racking system, framed modules from all the popular manufacturers can be used.
3.High Accuracy:
Without the need foron site cutting, the use of our unique rail extending allows the system to be installed with millimetre accuracy.
4.Excellent Adaptability:
The height adjustment of the rails from Sunforson allows a level PV array to be established, no matter how uneven the ground is. To High Standard Sunforson system is made to the highest standard, safe and strong its designed to comply with AS/NZS1170.
5.Maximum Lifespan:
All components are made of quality extruded aluminium and stainless steel, Hot Galvanizing Steel. The high corrosion resistance guarantees the maxim unpossible life span and is also completely recyclable.
6.Guaranteed Durability: Maximum Lifespan:
Sunforson provides a guarantee of 10 years on the durability of all components used.
A Full Commitment To Quality
Top material, quality craftsmanship and easy installation design, supported by senior engineers with comprehensive and in-depth mounting industry experience and garanteed with a 10-year limited parts warranty
