EASIER TO INSTALL AND SAFER SUNRACK BRAND MOUNTING SYSTEMS

Home page

SunRack BIPV System

bipv system for thin film solar panel. 1.Easy Installation 2.Top Compatibility 3.Customized designed offered 4.IBC&AS/NZS 1170 Item No.: SFS-BIPV-02 Payment: L/C T/T Product Origin: Fujian,China Color: Natural or Customized Shipping Port: Xiamen port Lead Time: 20 days

Classification of Affiliation:

SunRack BIPV

Keywords:

BIPV

Solar Bipv

Bipv Mounting

Building Integrated Photovoltaic System

Bipv Bracket

Solar Rack Mount Systems

Solar Photovoltaic System

Bipv Solar Panels

Product Enquiry

Product Description

Using SunRack , Enjoying Sunshine!

Using SunRack not only help you determine the best racking solution for solar power project, but also ensure you win the highest investment return and the most efficient of enjoying sunshine.

1. Lower cost, Incomparable value;

2. Faster installation, Flexible attachment;

3. More perfect service, Complete technical support;

4.10 years limited warranty, 20 years design life.

SFS-BIPV-02 SunRack BIPV System

The Sunforson “SunBIPV” leads the most advanced BIPV technology, gets rid off the metal sheet which many others primary BIPV solutions adopting- using metal sheet under panels increasing the cost and is not the real BIPV solution. The SunBIPV solution greatly cuts off the installation time and lower the cost, makes the final installation appearance is much better than primary solutions.

SFS-BIPV-02 is a waterproof support for photovoltaic panels, which can be used for the waterproof of roof, car shed, sunshine shed and other support structures. It has excellent waterproof property.

Product Specification:

Structural materials: Aluminum, stainless steel

Panel: Suitable for any type of panels

Survival wind speed: Up to 50m / s

Design snow pressure: Up to1.4KN / m2

Tilt Angle: Customized

Component direction: Landscape or portrait

Design Standards: IBC&AS / NZS 1170

Life: Design Life for 25 years, quality assurance for10 years

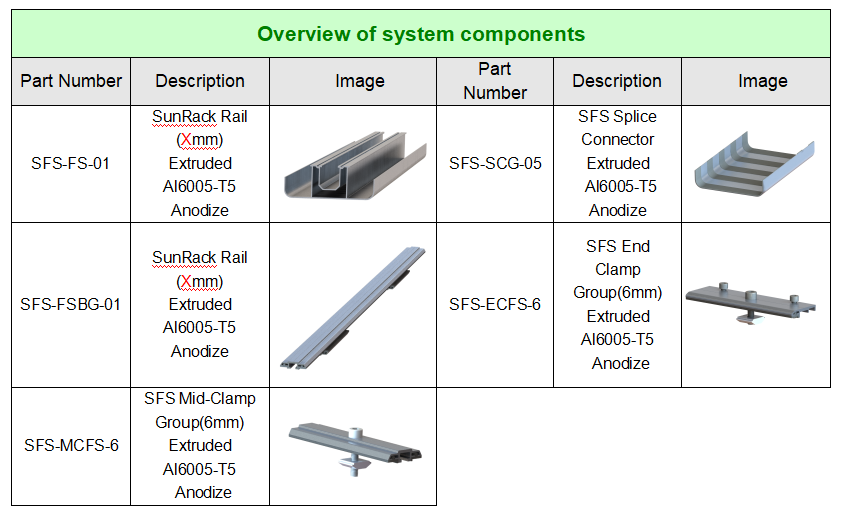

Overview of system components

Details Show

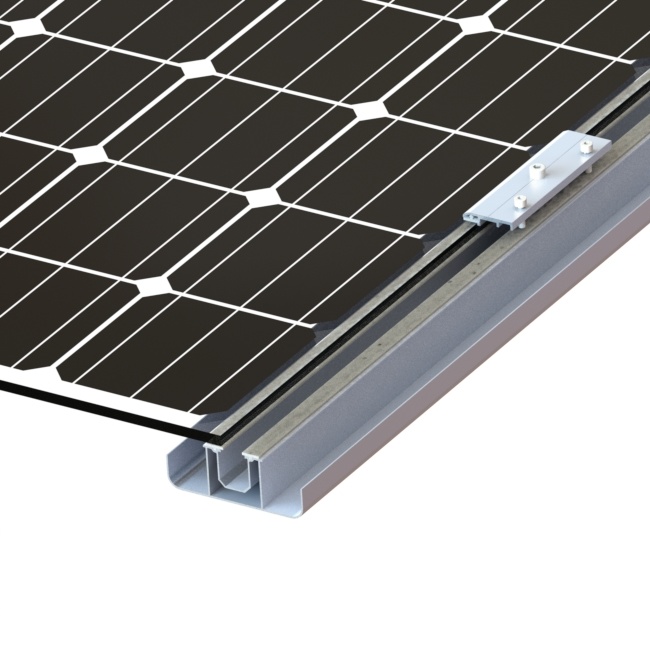

1. Double drainage structure, fast drainage and good waterproof. The addition of EPMD rubber strip not only protects the panel but also enhances the waterproof performance.

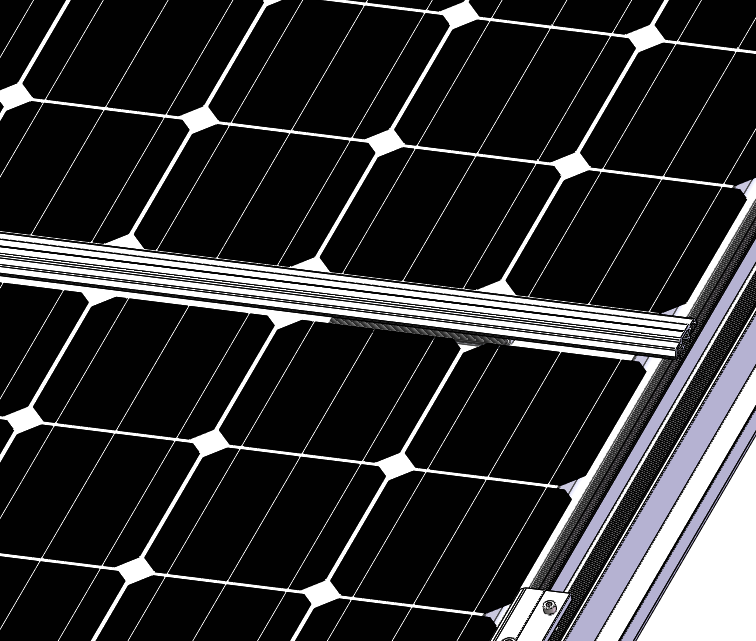

2. The short side waterproof structure of PV panels not only has strong applicability but also strengthens the wind resistance of PV panels.

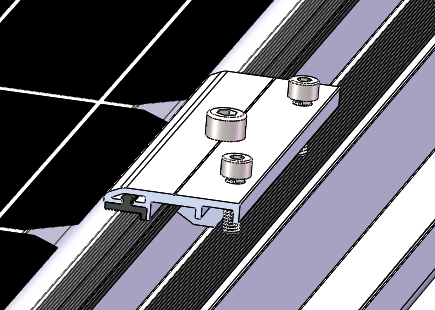

3. Adjustable side pressure for photovoltaic panels of any thickness

1.Easy Installation

The innovative Sunforson solar rail and G-Screw modules have greatly simplified the installation of PV modules. The system can be installed with a single hexagon key and standard tool kit. The SolarRoof system is aided by a very high level of pressembly. The G-Screw module and unique rail extension method allow greatly reduced installation times.

2.Great Flexbilitity

With the Sunforson solar roof mount, frammed photovoltaic modules can be easily mounted on pitched roofs. The solar roof system has mounting accessories designed for use on almost every roof cladding available wiht unique rail. Excellent Compatibility. Designed as a unversal racking system, framed modules from all the popular manufacturers can be used.

3.High Accuracy

Without the need for onsite cutting, the use of our unique rail extending allows the system to be installed with millimetre accuracy.

4.Excellent Adaptability

The height adjustment of the rails from Sunforson allows a level PV array to be established, no matter how uneven the roof. Engineered To high standard Sunforson solarroof is made to the highest standard, safe and strong its designed to comply with AS/NZS 1170.

5.Maximum Lifespan

All components are made of quality extruded aluminium and stainless steel. The high corrosion resistance guarantees the maximun possible lifespan and is also completely recyclable.

6.Guaranteed Durability

Sunforson provides a guarantee of 10 years on the durability of all components used.

A Full Commitment To Quality

Top material, quality craftsmanship and easy installation design, supported by senior engineers with comprehensive and in-depth mounting industry experience and garanteed with a 10-year limited parts warranty
